Engineering Graphics and Design (3110013)

BE | Semester-1   Winter-2019 | 09-01-2020

Q5) (c)

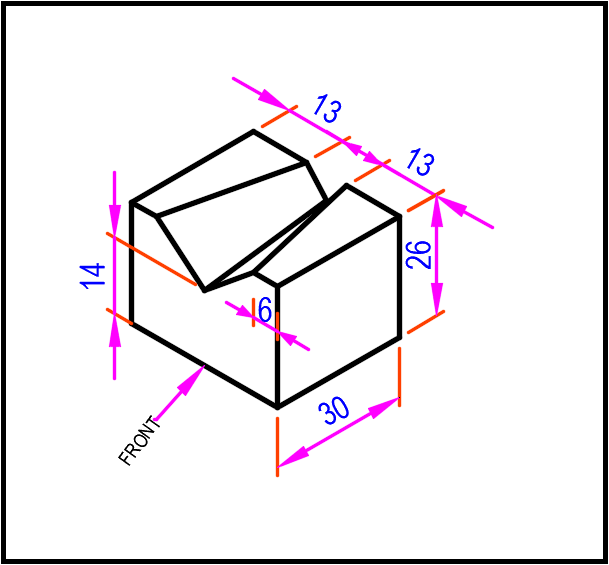

Draw and dimension completely, the following views according to the first angle projection method and to the full-size scale of a given figure 2.
  • Front view looking in the direction of arrow F,
  • Side view looking direction of arrow S,
  • Top view looking at the direction of arrow P.
