Software Engineering
(2160701)
SE-2160701
Summer-2017
Question-2a
BE | Semester-
6
Summer-2017
|
04/27/2017
Q2) (a)
3 Marks
Explain Software Engineering as a Layered Technology.
Software engineering is the establishment and use of sound engineering principles in order to obtain economically software that is reliable and works efficiently in real machines.

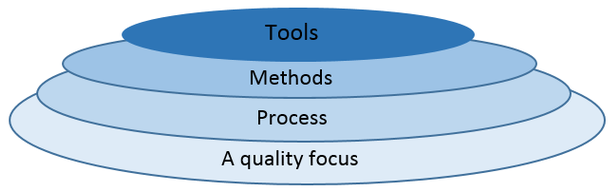

(Figure: Software Engineering Layers)
A quality Focus:
Main principle of Software Engineering is Quality Focus.
An engineering approach must have a focus on quality.
Total Quality Management (TQM), Six Sigma, ISO 9001, ISO 9000-3, CAPABILITY MATURITY MODEL (CMM), CMMI & similar approaches encourages a continuous process improvement culture
Process:
It is a foundation of Software Engineering
It is the glue the holds the technology layers
It defines a framework with activities for effective delivery of software engineering technology
Methods:
It provides technical how-to’s for building software
It encompasses many tasks including communication, requirement analysis, design modeling, program construction, testing and support
Tools:
Software Engineering Tools allows automation of activities which helps to perform systematic activities. A system for the support of software development, called computer-aided software engineering (CASE). Examples: Testing Tools, Bug/Issue Tracking Tools etc…
Computer-aided software engineering (CASE) is the scientific application of a set of tools and methods to a software system which is meant to result in high-quality, defect-free, and maintainable software products
CASE tools automate many of the activities involved in various life cycle phases
