Data Structure
(2130702)
DS2130702
Summer2014
BE  Semester
3
Summer  2014

06/04/2014
Total Marks
70
Q1
(a)
Answer the following
10 Marks
(b)
Evaluate the following postfix expression using stack
4 Marks
Q2
(a)
Write an algorithm to convert infix to postfix expression and explain it with example
7 Marks
(b)
Translate the following string into polish notation and trace the content of stack
7 Marks
OR
(b)
(i) Consider a dequeue given below which has LEFT=1, RIGHT=5
7 Marks
Q3
(a)
Write a program in any programming language to concatenate two doubly linked lists.
7 Marks
(b)
Write an algorithm to insert a node in an ordered linked list
7 Marks
OR
Q3
(a)

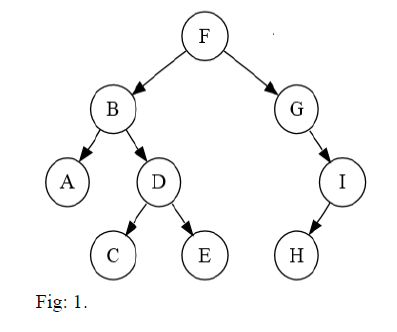

Give the preorder and Inorder traversal of the tree given in fig 1.
7 Marks
(b)
Given the following traversals create a binary tree from that. Also give the postorder traversal for the same.
7 Marks
Q4
(a)
Explain DFS and BFS with example
7 Marks
(b)
Construct a binary search tree for the following sequence. Also do the inorder and postorder traversal for the same
7 Marks
OR
Q4
(a)

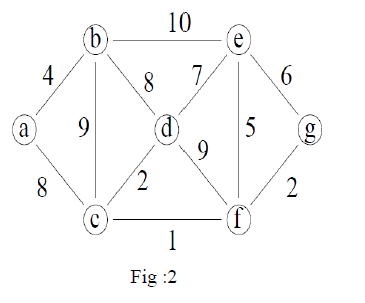

What is a spanning tree? Find the minimum spanning tree for the graph shown in fig 2.
7 Marks
(b)
Write short notes on (i) Height Balanced Tree. (ii) IndexedSequential Files
7 Marks
Q5
(a)
What do you mean by Hashing? Explain any FOUR hashing techniques
7 Marks
(b)
Define the following terms
7 Marks
OR
Q5
(a)
Compare and contrast Prim’s and Kruskal’s algorithm with the help of an example
7 Marks
(b)
Explain AVL tree with the help of an example also show insertion and deletion with the help of an example.
7 Marks
