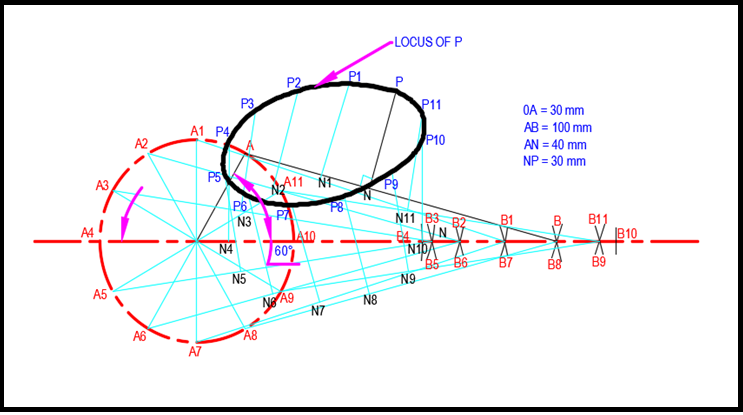

OAB is a slider-crank mechanism. Slider B is sliding on a straight path passing through O as shown in Figure 1 given below. Crank OA is 30 mm and rotates in the anticlockwise direction and the length of connecting red AB is 100 mm. A rod NP of 30 mm length is attached to AB such that AN = 40 mm and NP is perpendicular to AB as shown Draw locus of point P for one complete revolution of the crank.
